Skill Issues

This is part 4 of a series, and expands on the Fen language I introduced in Part 3

We got Fen squared away, meaning that skills should be functional for most now, right? That means that we should start working on getting them implemented, but...

First Thing's First

When I started working on this update, I wound up overhauling Fen to v2. The first version is perfectly usable, but the second adds variable support as well as more complex instructions. You can, for example, do this now:

var test is target stat attack
target damage test
if not target type fruit
set target type fruit
else
mul test 3
end
mul test 2
target damage test

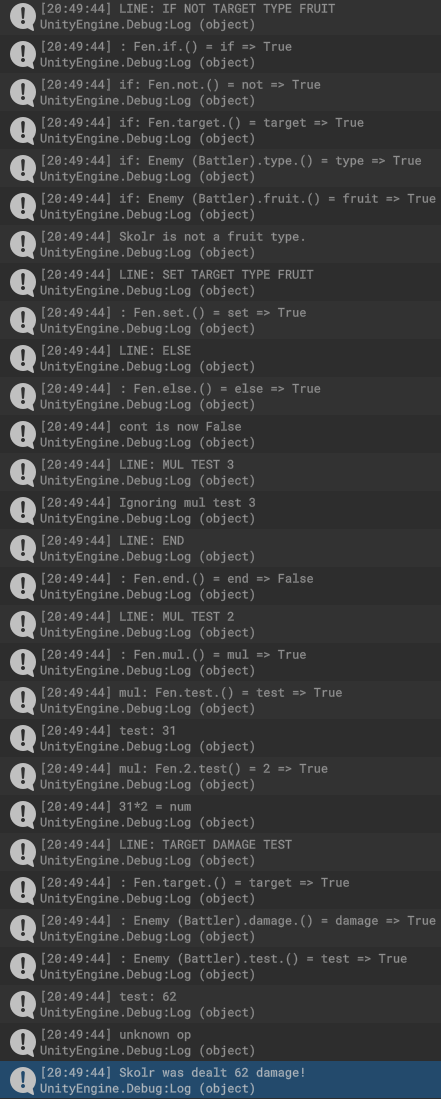

I don't want to make this entire post about this, but this is the package struct now:

public struct Package
{
    public List<string> instructions;
    public Dictionary<string, object> properties;
    public string op, prop;
    public bool cont;
    public Fen.Context ctx;
    public object scope, value;

    public string func;
    public bool more => instructions.Count > 1;
    public string next => instructions[1];
    public T Value<T>() => (T)value;

    public Package Next() => Next(false);

    public Package Next(bool setValue)
    {
        if (instructions.Count == 0) return this;
        func = instructions[0];
        instructions.RemoveAt(0);

        if (prop == null || setValue) value = func;

        Debug.Log($"{op}: {scope}.{func}.{prop}() = {value} => {cont}");

        if (properties.ContainsKey(func))
            return Property();

        if (ctx.ContainsKey(func))
            return Scope();

        switch (scope)
        {
            case IFen:
                var fen = scope as IFen;
                if (fen.Functions().ContainsKey(func))
                    return fen.Functions()[func](this);
                break;
        }

        return this;
    }

    public Package Property()
    {
        prop = func;
        var pVal = properties[prop];
        value = properties[prop];
        Debug.Log($"{prop}: {pVal}");

        float.TryParse((string)pVal, out var num);

        switch (op)
        {
            case "mul":
                var mul = Next(true).Value<string>();
                num *= float.Parse(mul);
                Debug.Log($"{pVal}*{mul} = num");
                properties[prop] = num.ToString();
                break;
            default:
                Debug.Log($"unknown op {op}");
                break;
        }

        value = properties[prop];





        return Next();
    }

    public Package Scope()
    {
        scope = ctx[func];
        return Next();
    }

}

Our constructor function is now:

public class Fen : IFen
{
    public class Context : Dictionary<string, IFen> { }

    public Fen(string script, Context ctx)
    {
        Package pkg = new() { cont = true, scope = this, ctx = ctx, properties = new() };
        var lines = script.Split('\n');
        foreach (var line in lines)
        {
            Debug.Log($"LINE: {line.ToUpper()}");
            pkg.prop = null;
            pkg.scope = this;
            pkg.op = "";
            pkg.instructions = line.Split(" ").ToList();
            pkg.func = pkg.instructions[0];
            if (!pkg.cont && !ignoresCont(pkg)) { Debug.Log($"Ignoring {line}"); continue; }
            pkg = pkg.Next();
        }
    }

    public FenFunctions Functions() =>
        new()
        {
            {"if", pkg => If(pkg) },
            {"not", pkg => Not(pkg) },
            {"set", pkg => Set(pkg) },
            {"else", pkg => Else(pkg) },
            {"var", pkg =>  Var(pkg)},
            {"end", pkg => End(pkg) },
            {"is", pkg => Is(pkg) },
            {"mul", pkg => Mul(pkg) },
        };


    public Package Not(Package pkg)
    {
        pkg.cont = !pkg.Next().cont;
        return pkg.Next();
    }

    public Package Else(Package pkg)
    {
        pkg.cont = !pkg.cont;
        Debug.Log($"cont is now {pkg.cont}");
        return pkg;
    }

    public Package Var(Package pkg)
    {
        pkg.prop = pkg.Next().func;
        pkg.properties.Add(pkg.prop, null);
        Debug.Log($"Added variable {pkg.prop}.");
        return pkg.Next();
    }

    public Package End(Package pkg)
    {
        pkg.cont = true;
        return pkg;
    }

    public Package Is(Package pkg)
    {
        pkg.op = "get";
        pkg.properties[pkg.prop] = pkg.Next().value;
        return pkg.Next();
    }

    public Package Mul(Package pkg)
    {
        pkg.op = "mul";
        return pkg.Next();
    }

So yeah. I'm debating on throwing Fen up on github as a generic C# project instead of dropping big code blocks here every time I figure out how to improve this thing. If I do, I'll be sure to mention when I'm using a new feature.

With that out of the way...

It's time to tame this beast

Our skill system asset is this:

[CreateAssetMenu(fileName = "New Skill", menuName = "Origin/Skill")]
public class Skill : ScriptableObject, IFen
{
    public enum Range { Melee, Ranged };
    public enum PowerType { Physical, Magical };

    public Range range;
    public PowerType type;
    public MonsterData signatureMonster;
    public Grade grade = Grade.C;
    public int power;
    [Range(1, 100)]
    public int accuracy, hits = 1, cost;
    public Skill linker;
    [Multiline(2)]
    public string description;
    [Multiline(4)]
    //Fen scripts
    public string onActivate, onHit, onMiss;

    public int instructionCount => (onActivate.Split(" ").Length + onHit.Split(" ").Length + onMiss.Split(" ").Length) * 3;
}

Just like with MonsterData, we're using a scriptable object for this one. Speaking of MonsterData, you might be wondering why we have a reference to one.

One of the secrets about Pokemon is that every move is based on a Pokemon, which is then often reused by any Pokemon that makes sense to use the move. We can take this concept to then assign every monster a move based on them, which allows us to take their stats and use them to calculate the "power" of the move.

  public void OnValidate()
  {
      if (signatureMonster != null)
      {
          power = (range, type) switch
          {
              (Range.Melee, PowerType.Physical) => signatureMonster[StatType.Attack] + signatureMonster[StatType.Strength],
              (Range.Ranged, PowerType.Physical) => signatureMonster[StatType.Attack] + signatureMonster[StatType.Dexterity],
              (Range.Melee, PowerType.Magical) => signatureMonster[StatType.Magic] + signatureMonster[StatType.Strength],
              (Range.Ranged, PowerType.Magical) => signatureMonster[StatType.Magic] + signatureMonster[StatType.Dexterity],
              _ => 0,
          };

          var accmul = (float)signatureMonster[StatType.Speed] / signatureMonster[StatType.Luck];


          var multiplier = (1f + (int)grade) / StatCount;
          power = (int)(power * multiplier);
          cost = ((power + ((hits - 1) * 5)) + instructionCount) / 5;
          if (hits > 1)
              power /= hits / 2;
          power = (int)(Mathf.Round(power / 5f) * 5);

          accmul -= power / 200f;

          accuracy = (int)(50 * accmul);
      }

  }

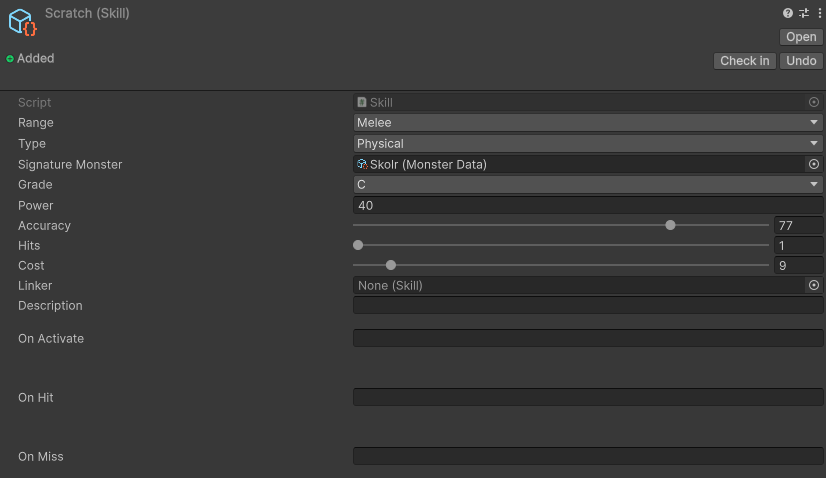

Which gives us this:

That's pretty good for now. Gives us what we need to get things going.

Learnsets

In a JRPG, a Learnset is an array of moves a class can learn, as well as the level they can do it. It's important for moves to feel like an upgrade, as it gives really gives weight to the levels and shows that they're gradually growing stronger.

Can we automate this too? Oh yes we can.

Since the goal today is to get the battle system functional, I'm going to only focus on attack moves. This means our learnset generation is going to be rather simple. What we need to do is use:

moves = Resources.LoadAll<Skill>("Data/Skills").ToList();

Resources.Load methods are generally very slow in runtime, so it's not advised anymore. However, since we're only generating the values in the Editor, it's fine.

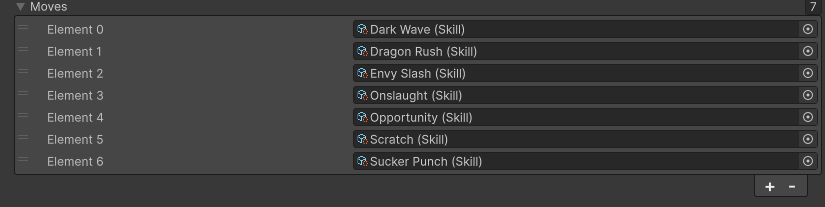

Of course, now we're left with a bit of a problem. The skull dog can apparently learn "Dragon Rush" and "Sucker Punch" despite not being a dragon and not having fists.

What we need to do is add Tags.

Tags

Tags are easily one of the most powerful tools in procedural generation. The most efficient way to do it is to simply have a string like "insert, your, cool, tag, here". And while this is nice, if you're anything like me then you're going to forget that the moment you see a shiny thing on the ground.

There's also Bitmasking, which is basically an enum that can have multiple values, or flags. Flags are limited to how many bits are in the integer that you set the enum to. The default is an int32, so that's only 32 flags. You can absolutely set it to 64 instead by using a "long", which could suit your needs.

For now, we can do this approach, and just wrap the tag in a method so we can change it later.

    [System.Flags]
    public enum Tags : short
    {
        Cool = 1 << 0,
        Scary = 1 << 1,
        Sharp = 1 << 2,
        Tail = 1 << 3,
        Eyes = 1 << 4,
        Punk = 1 << 5,
        Fists = 1 << 6,
        Draconic = 1 << 7,
        Fluffy = 1 << 8,
        Bone = 1 << 9,
        Bulky = 1 << 10,
        Claws = 1 << 11,
    }

Now our moveset retriever becomes:

void MakeMoveset()
{
    moves = Resources.LoadAll<Skill>("Data/Skills").ToList();
    moves.RemoveAll(x => !HasTag(x.tags));
}

public bool HasTag(Tags tag) => tags.HasFlag(tag);

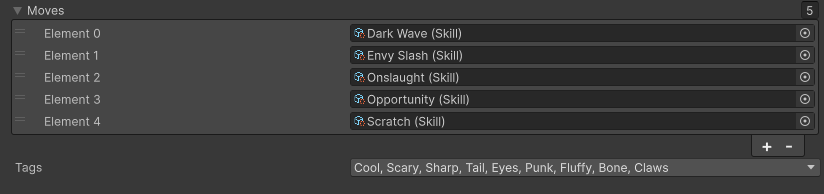

Which gives us:

And that'll continue populating as we add new skills.

Creating the Learnset

Since we only have attack skills right now, we can sort our moves by using a somewhat naive approach. Later, we can simulate the move using actual damage calculation to sort it, but for now our calculation will be:

    public int RawDamage(Skill move)
    {
        var pow = 0;
        pow += this[move.range == Skill.Range.Melee ? StatType.Strength : StatType.Dexterity];
        pow += this[move.type == Skill.PowerType.Physical ? StatType.Attack : StatType.Magic];
        pow *= (int)(move.power * (move.hits / 2f));
        return pow;
    }

And the Learnset itself:

    void MakeLearnset()
    {
        if (moves.Count == 0) return;

        learnset.Clear();
        int level = 0;
        var grade = Grade.C;

        var sortedMoves = (from move in moves orderby RawDamage(move) select move).ToList();

        while (level < 100 && sortedMoves.Count > 0)
        {
            learnset.Add(new(level, sortedMoves[0]));
           if (grade != sortedMoves[0].grade && learnset.Count > 1) { level += 5; grade = sortedMoves[0].grade; }
            sortedMoves.RemoveAt(0);
            level += Random.Range(1, 5);
        }
    }

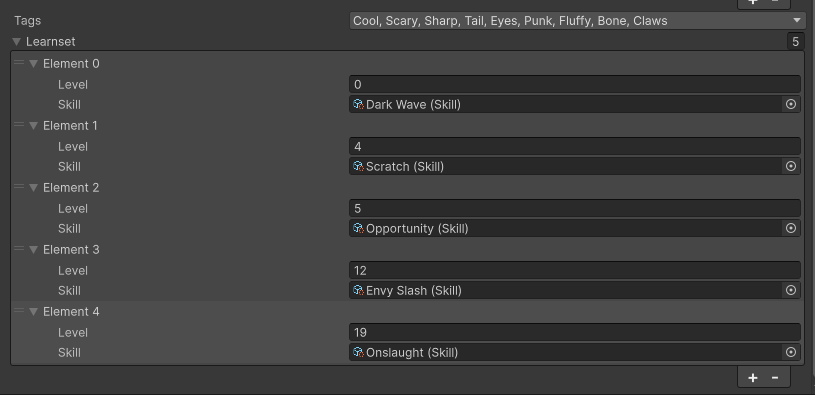

Of course, you can see here that Dark Wave--a move with 65 power right now--is considered the weakest move. This is because the skull doggo has a D in Magic and Dexterity, so it'd actually be very weak for him.

It's something to be aware of, and we'll see if it becomes a problem in the future.

Now onto IndividualMonster's moveset.

Moveset

In Pokemon, Pokemon only have 4 moves at a time. In Origin...

This means that you can summon a monster on your team for 2 additional moves. It's not a true double battle--double battles have the issue of making it so that you can setup and attack at the same turn--but it still allows for 6 moves total.

I'm still not gonna go into Assists until the prototype is done, but I still wanted to show this mockup off a little bit. For this post, we're just going to be doing the basic 4 moves.

We'll be appending IndividualMonster's Create method and adding this little snippit right here:

        var monMoves = data.learnset.ToList();
        Debug.Log($"{data.name} has {data.learnset.Count} moves");
        monMoves.RemoveAll(x => x.level > monster.level);
        Debug.Log($"{monster.name} can learn {monMoves.Count} moves");

        while (monster.skills.Count < 4 && monMoves.Count > 0)
        {
            var id = Random.Range(0, monMoves.Count);

            monster.skills.Add(monMoves[id].skill);

            monMoves.RemoveAt(id);
        }

Tech UI

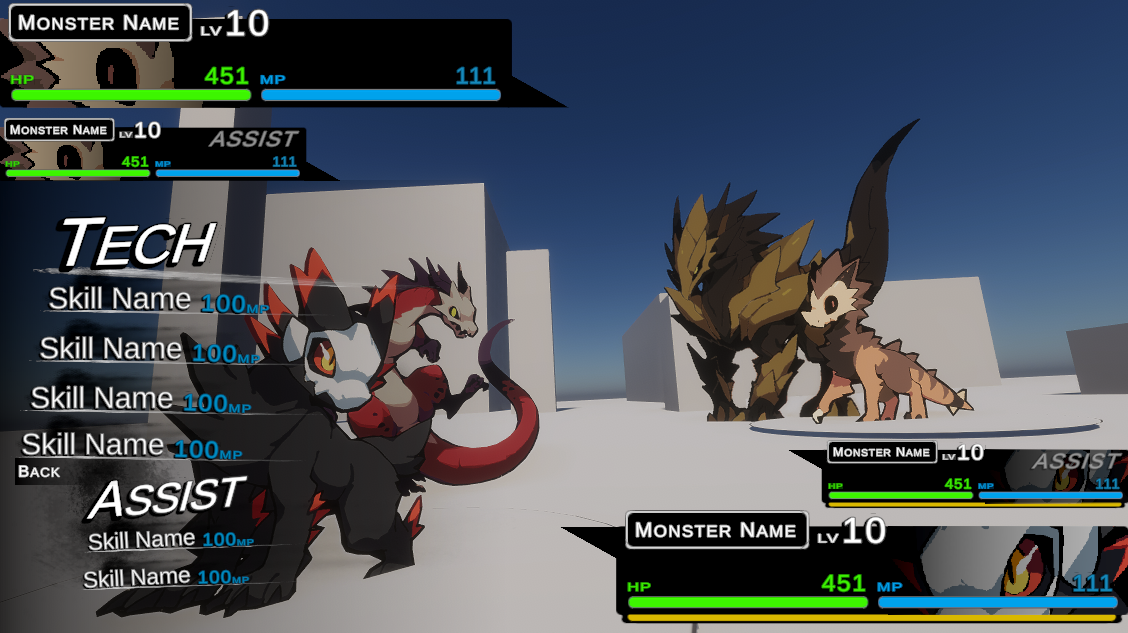

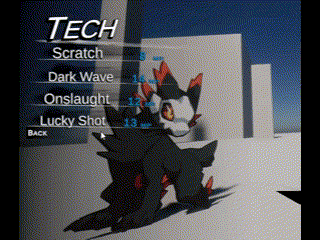

The Tech option is what you see up there. It's comprised primarily of a class called Skill Card, which we can see here:

public class SkillCard : Selectable
{
    public Button button;
    public new TMP_Text name;
    public TMP_Text cost;
    public Transform description;
    public TMP_Text descriptionText;
    public TMP_Text power;
    public int id;
    public bool selected;


    // Start is called once before the first execution of Update after the MonoBehaviour is created
    new void OnEnable()
    {
        var monster = GameManager.instance.playerParty[0];
        if (monster.skills.Count < id) gameObject.SetActive(false);

        var skill = monster.skills[id];

        name.text = skill.name;
        cost.text = skill.cost.ToString();
        description.localScale = new(1, 0, 1);
        descriptionText.text = skill.description;
        power.text = skill.power.ToString();
    }


    public void Update()
    {
        selected = IsHighlighted();
        description.localScale = selected ? Vector3.Lerp(description.localScale, new(1, 1, 1), Time.deltaTime * 7) : Vector3.Lerp(description.localScale, new(1, 0, 1), Time.deltaTime * 7);

        var pRect = transform.parent.GetComponent<RectTransform>();

        pRect.sizeDelta = selected ? Vector2.Lerp(pRect.sizeDelta, new(300, 100), Time.deltaTime * 7) : Vector2.Lerp(pRect.sizeDelta, new(300, 50), Time.deltaTime * 7);
    }


}

Phew. I was originally going to make a single post all about the battle system, but there was more work I had to do with Skills before we tackled that, and the Fen update took up a little too much more than I was hoping for. There's likely going to be a lot to cover before this system is done, so tune in for state machines, damage formulae, and a simple but effective predictive ai.
